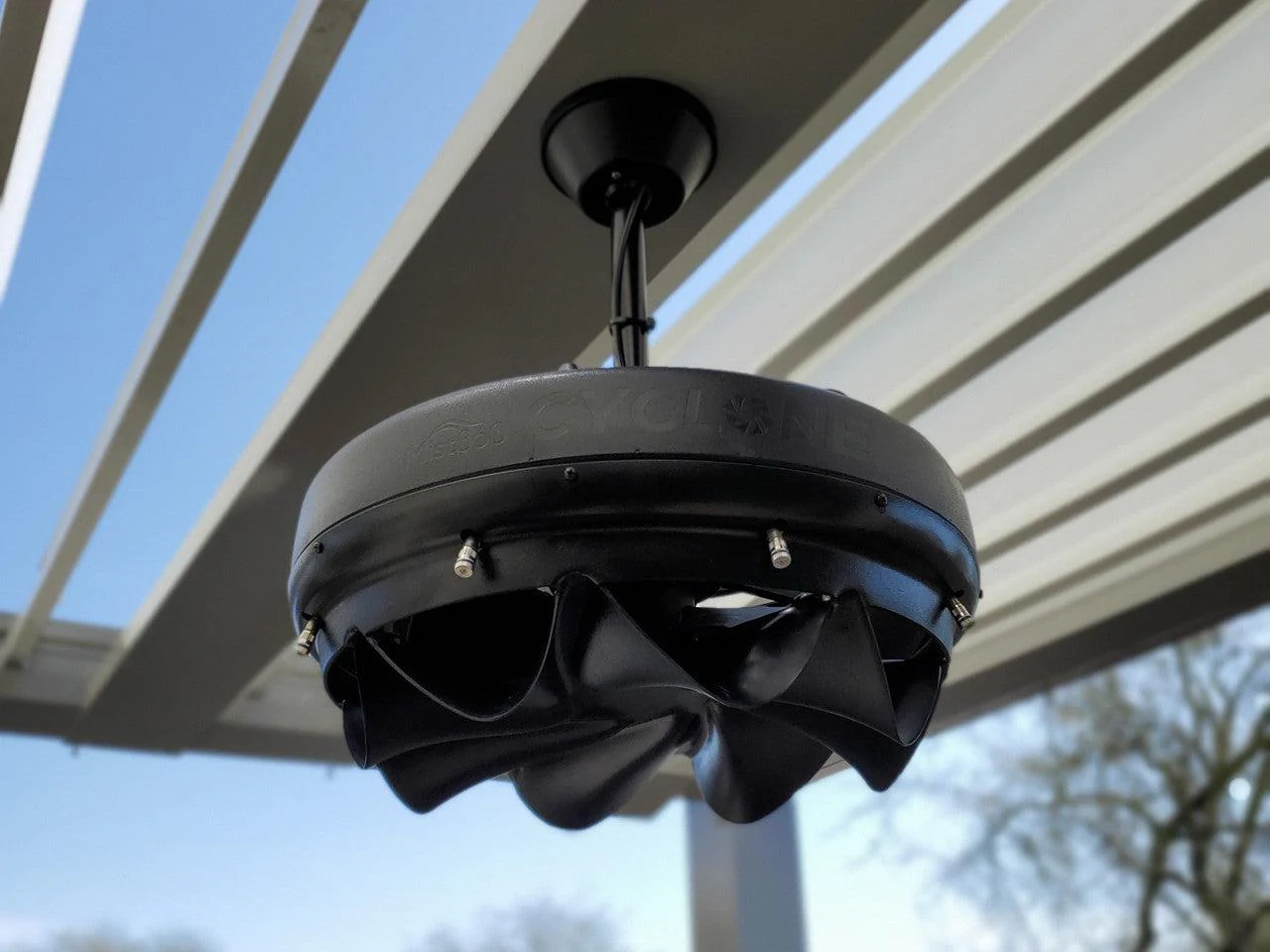

Mist360 Cyclone
Patented airflow technology in an ultra-compact package. At just 3.5 kg, the Cyclone delivers high-velocity misting across up to 100-200 sq ft through 8 Ruby nozzles — and multiple units can run off a single pump, making it the scalable choice for large commercial spaces.
Why Choose Cyclone
Patented Airflow
Cyclonic blade technology
Up to 100-200 sq ft
High-output cooling area
Ultra-Light 3.5 kg
Compact ceiling-mount design
8 Ruby Nozzles
MARubies™ precision mist
Multi-Unit Scalable
Share a single pump system
3 Standard Colours
Black, White & Brown
Perfect For

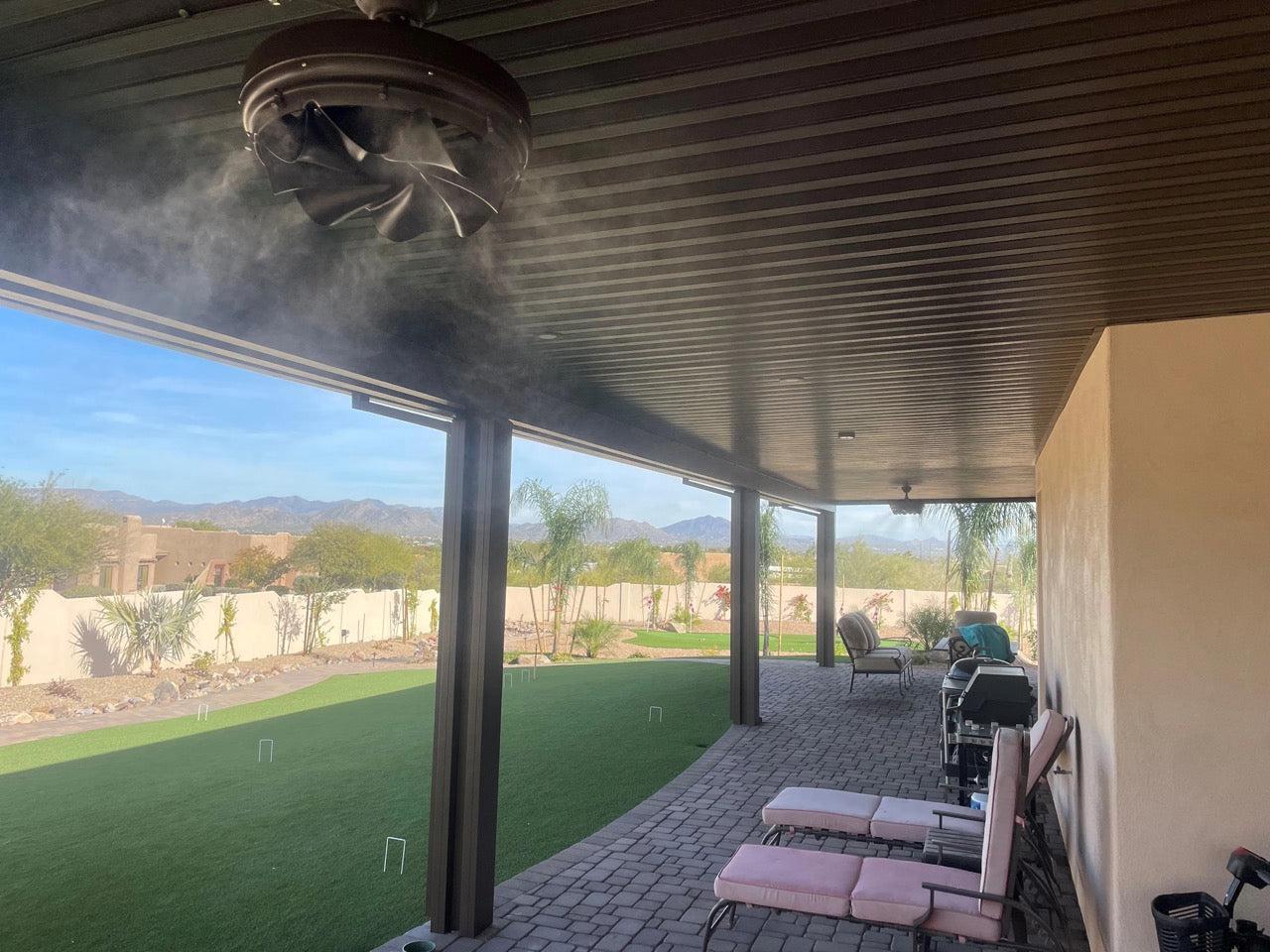

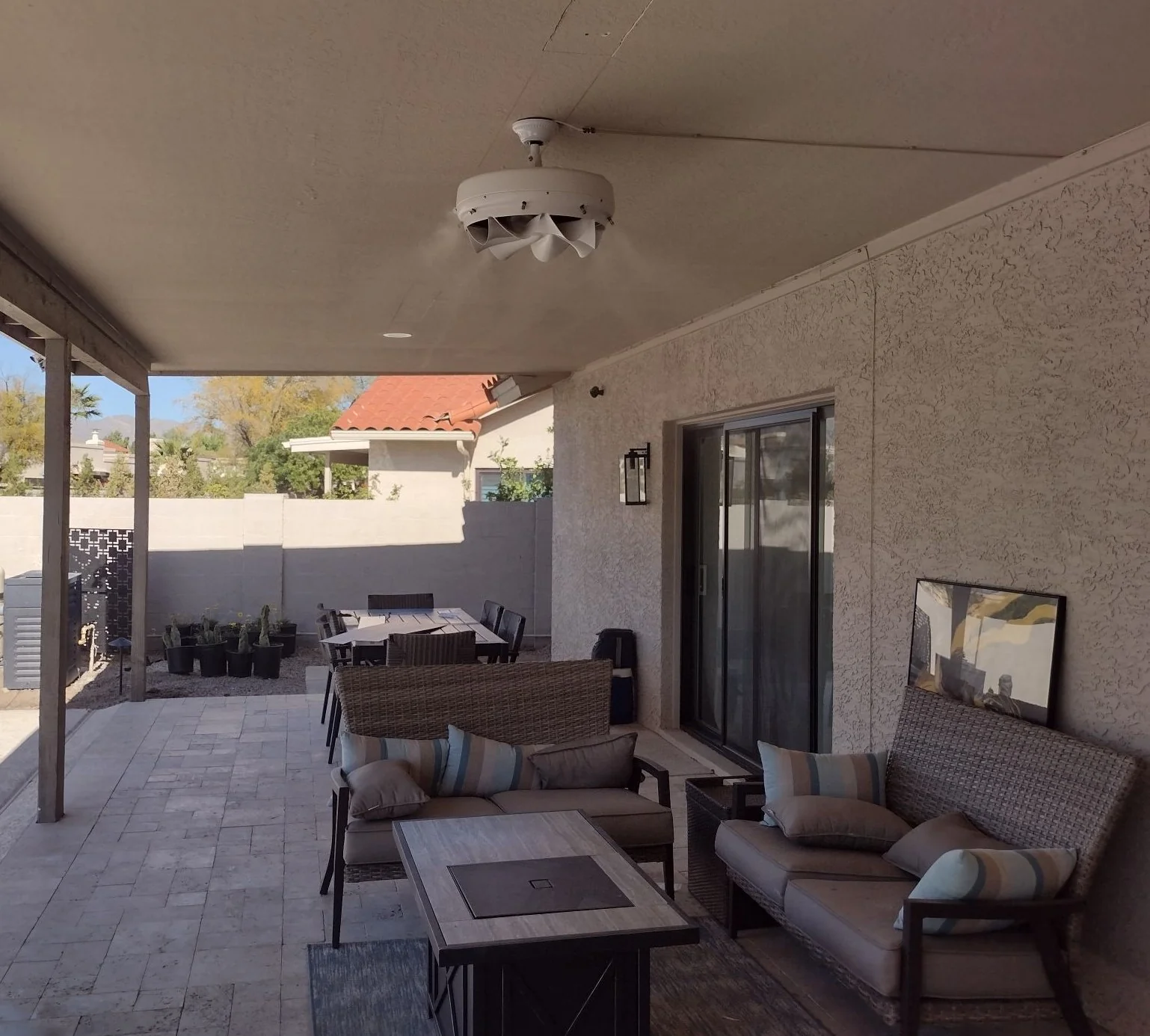

Residential: Large covered terraces • Double-height pergolas •
Outdoor living rooms • Entertainment decks
Commercial: Large restaurant outdoor areas • Resort pool zones •
Sports venues • Multi-zone commercial installations (multiple units on single pump) •
Exhibition spaces • Wedding venues
Complete Technical Specifications
Product Name: Mist360 Cyclone Fan
Technology: Patented Airflow Technology
Cooling Zone: Up to 100-200 sq ft
Nozzle Quantity: 8 nozzles
Nozzle Type: MARubies™ Ruby Misting Nozzles
Water Usage: 23 litres per hour
Dimensions: 450mm Ø × 268mm height (18″ Dia × 8″ tall)
Weight: 3.5 kg (7 Lbs)
Power: 2.85A, 220V 50Hz
Motor: 567 Watts
Phase: Single
Standard Colours: Black, White & Brown
Custom Colour: Painted to any colour as upgrade option
Mounting: Standard ceiling fan bracket to J-Box
Installation: Mounting kit & wiring same as ceiling fan
Water Supply: Nylon or stainless steel tubing to high-pressure mist pump
Multi-Unit: Multiple Cyclone fans can operate off a single high-pressure mist pump
Fan Operation: Fan may be run independently without mist
Control: Standard light switch can be installed for fan on/off
Manufacturer: MistAmerica
For Indian Customers
Climate Suitability: The Cyclone's high-velocity airflow makes it
effective across Indian climates — from dry-heat cities (Delhi, Jaipur, Lucknow) where
flash evaporation delivers maximum cooling, to humid coastal regions where the airflow
alone provides significant relief.
Power Compatibility: Designed for Indian 220V 50Hz supply. Fan can be
run independently of the misting system using a standard light switch for year-round
ventilation use.
Scalability: Multiple Cyclone units can run from a single pump —
making this the most cost-efficient choice for large commercial installations
(restaurants, resorts, event venues) across India.
Delivery: PAN INDIA. Ships complete with mounting hardware.
Installation: Standard ceiling fan mounting — any qualified electrician
can install. Professional installation also available through Opuluxe.
